Simultaneous Dual-Wheel Operation for Increased Throughput

SS1000 Dual Grinding-Polishing Systems

LECO SS1000 Metallography Grinder Polisherreplacing grinding disc on metallography grinder-polisheradjusting speed on metallographygrinder-polisher

Reliable Operation for Sample Preparation

The SS1000 is a dual-wheel grinder/polisher engineered to enhance consistency, efficiency, and ease in metallographic sample preparation. Its simultaneously controlled 8-inch platens allow users to dedicate each wheel to a specific grinding or polishing stage, streamlining workflows and minimizing cross-contamination. For added versatility, an optional oscillating head enables semi-automatic preparation using a central force sample holder. This sweeping motion ensures even wear across the disc surface, delivering exceptional flatness and uniform results.

Compact and intuitive, the LECO Spectrum System 1000 (SS1000) is ideal for low- to medium-volume laboratories seeking reliable, high-quality performance in a space-saving design.

Why Choose the LECO SS1000

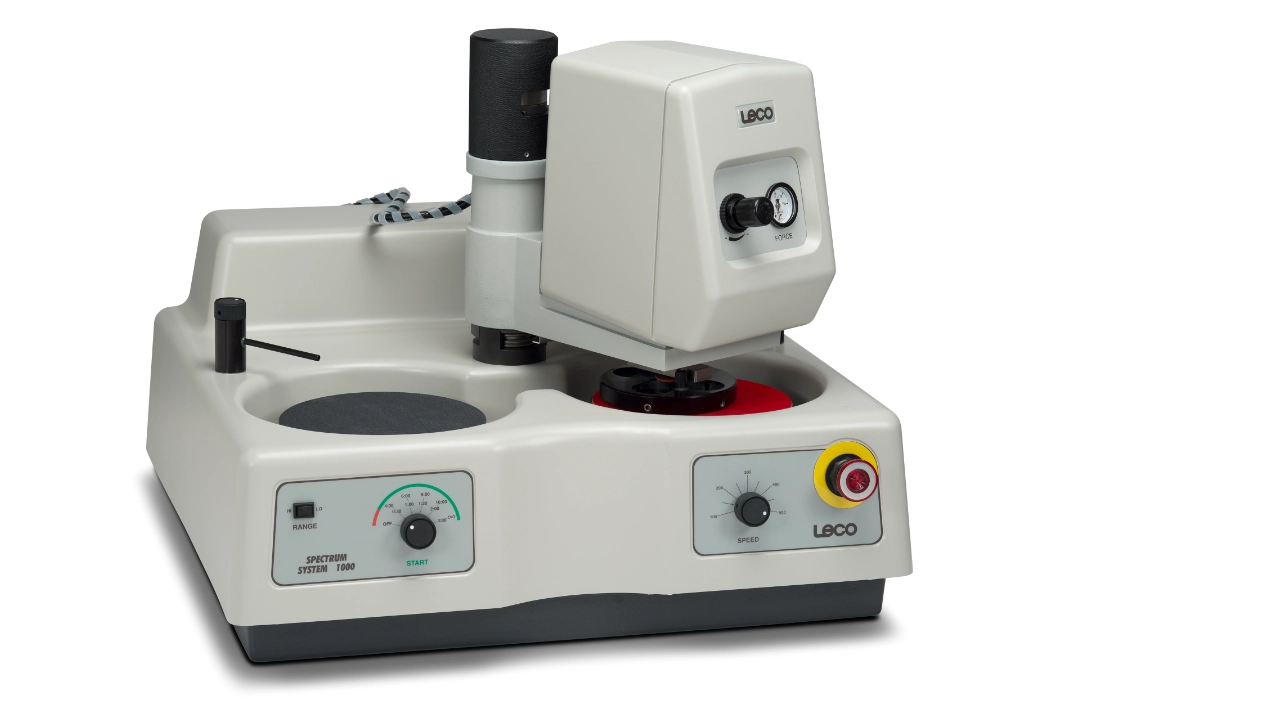

LECO SS1000 Metallography Grinder Polisher

Dual Wheel Efficiency

The SS1000’s dual-wheel design improves laboratory efficiency by allowing each platen to be dedicated to a different preparation step. This reduces setup time, minimizes the risk of cross contamination, and creates a smoother, more productive workflow from sample to sample.

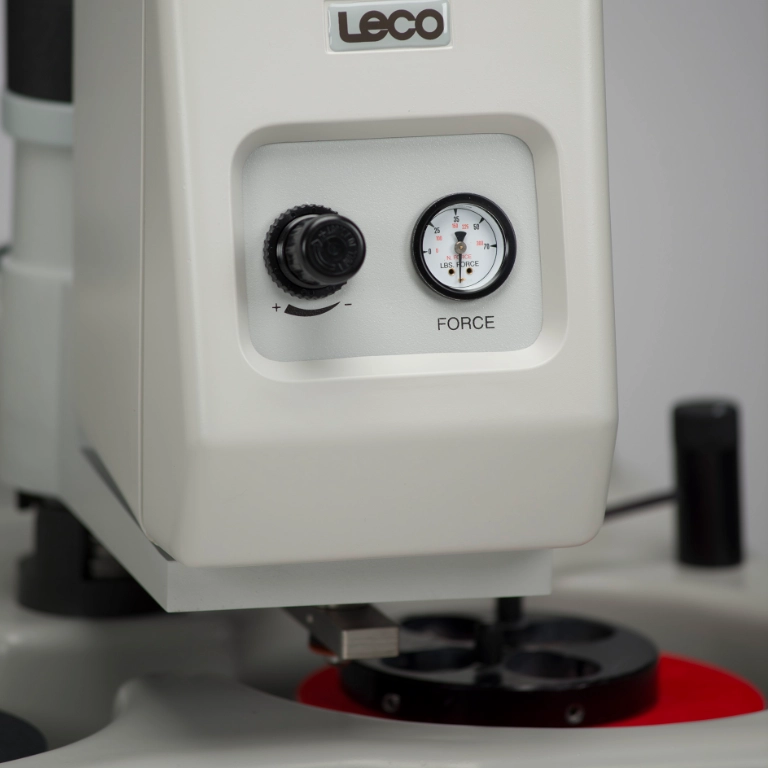

Metallography Grinder Polisher Oscillating Head

Simplified Operation and Consistent Results

Built-in timer and optional semi-automatic operation with an oscillating head help standardize preparation procedures and reduce operator involvement. By automating routine grinding and polishing steps, the SS1000 improves repeatability, increases throughput, and delivers consistent results across recurring applications.

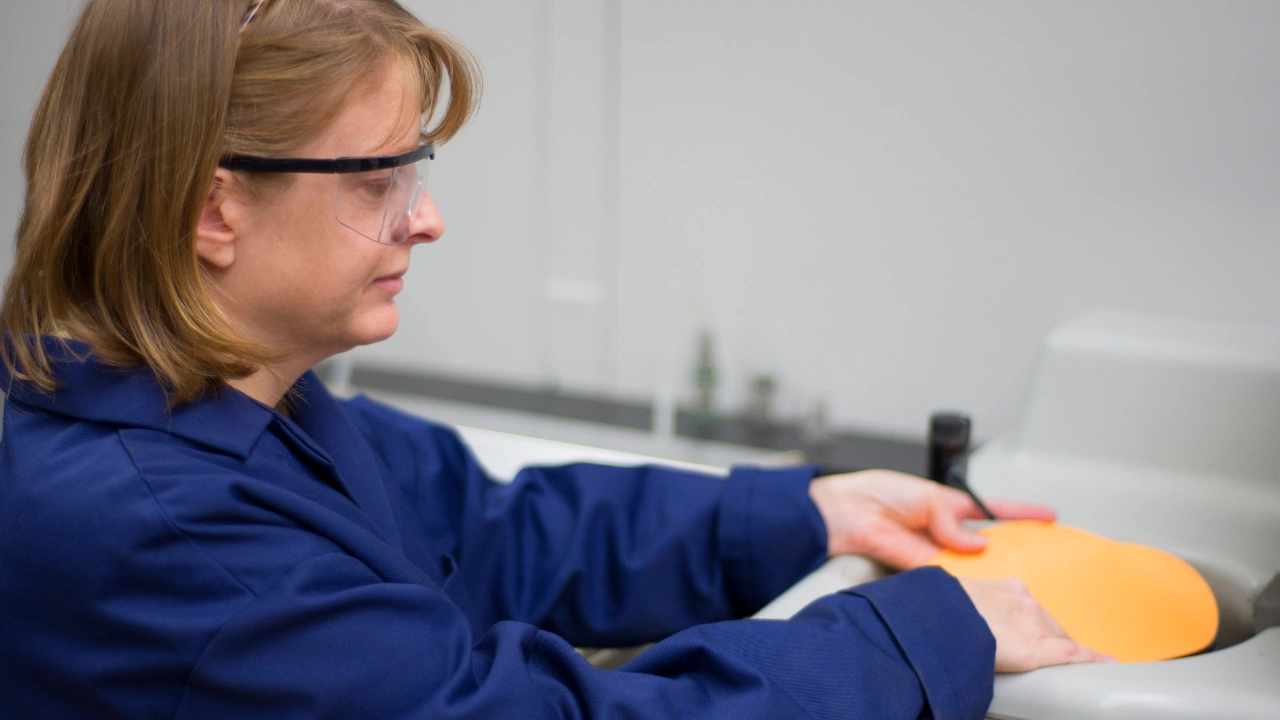

replacing grinding disc on metallography grinder-polisher

Compact Footprint with Scalable Flexibility

Designed to maximize valuable bench space, the SS1000 combines a compact footprint with the durability required for everyday laboratory use. Its modular design allows laboratories to expand capabilities as requirements evolve, providing a flexible solution that can grow alongside changing workload demands.

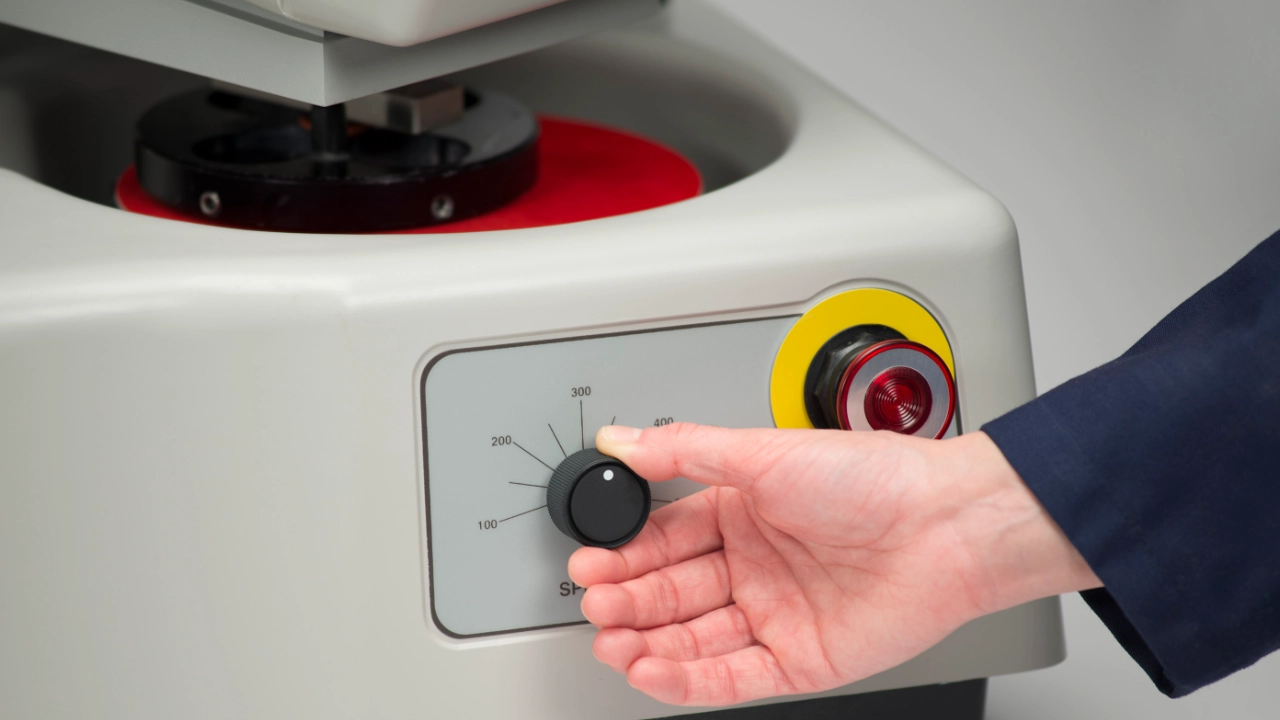

adjusting speed on metallographygrinder-polisher

Durable Construction for Reliable Performance

Built around a robust 0.5 hp motor, the SS1000 maintains steady performance for dependable day-to-day operation. Its durable construction supports consistent sample preparation results, long-term reliability, and reproducible performance in demanding laboratory environments.

Download the SS1000 Brochure

計測機器の用途

バッテリー分析
建材
高性能材料
金属、鉱物、および鉱石

コア分析

材料分類

楽器の詳細

特徴

Dual 8-inch grinding and polishing wheels
Allows two preparation steps to be set up simultaneously, reducing changeover time and increasing sample throughput.
Variable speed control
Optimizes preparation parameters for a wide range of materials and preparation techniques.
Integrated timer
Delivers repeatable preparation procedures.
Optional oscillating polishing head
Automates sample movement and force application for improved consistency, flatness, and operator efficiency.
Central force specimen holder
Allows multiple samples to be prepared simultaneously, improving throughput and repeatability.
Adjustable water faucets for each wheel
Improves cooling and debris removal while allowing independent control of each preparation stage.
Compact benchtop footprint
Maximizes laboratory space while providing excellent grinding and polishing performance.
Rugged motor-driven design
Ensures dependable, long-term performance even in challenging environments.

オプション

Oscillating sample head for semi-automatic operation
Gravity Feed dispenser
