Cut metal bars

Manual Precision Sectioning for Metallographic Samples

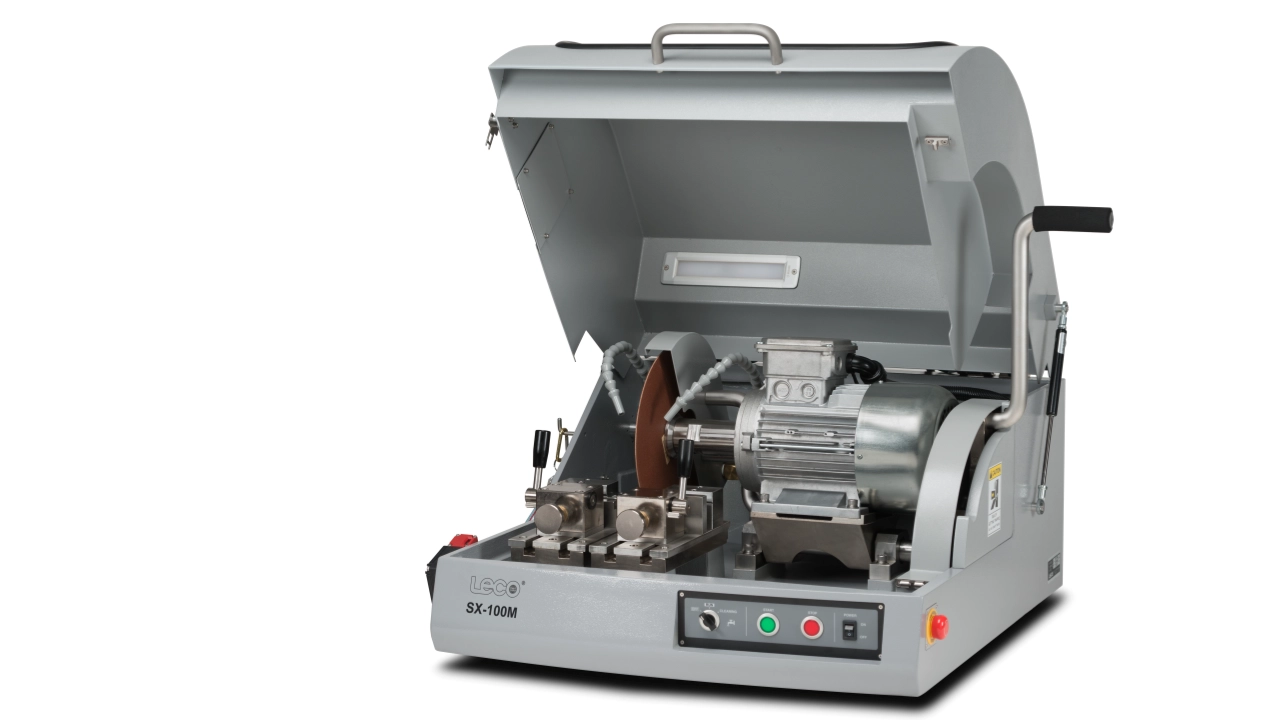

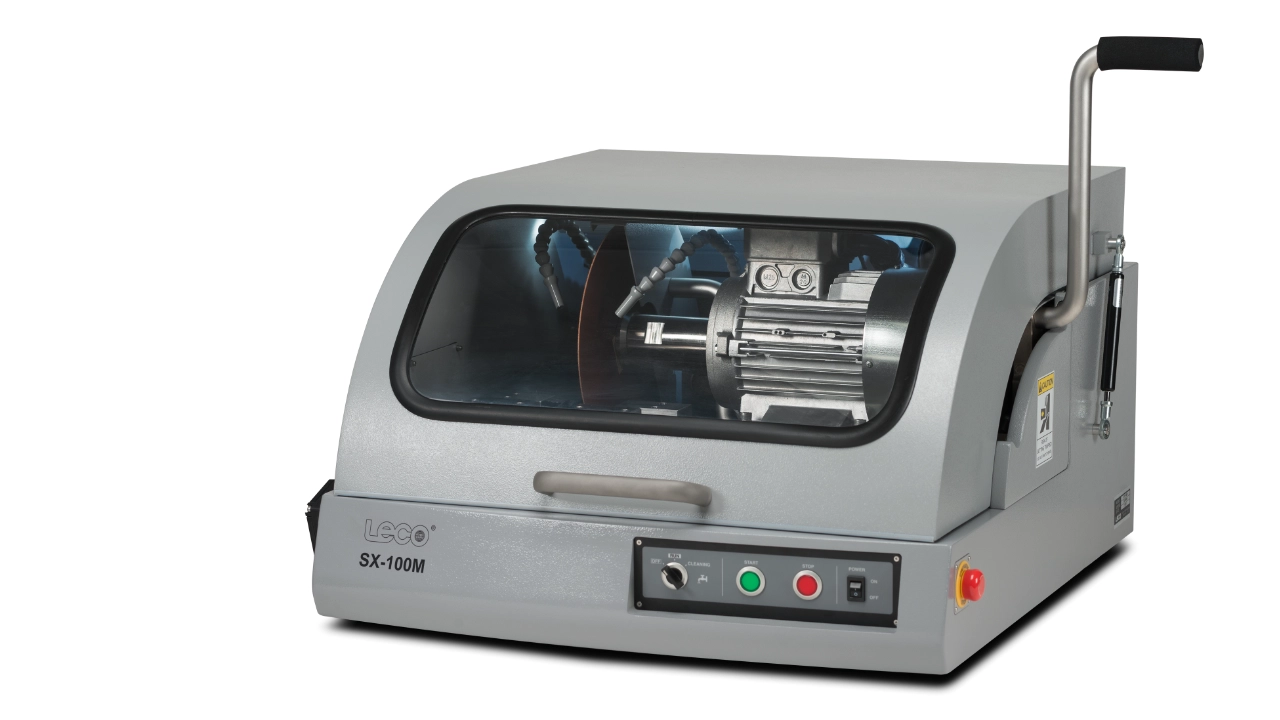

SX100 Precision Sectioning Machine

LECO SX100 金属組織切断用ソーLECO SX100 金属組織切断用ソーsafety controls for metallographic sawcutting wheel and table of metallographic sectioning machineperson operating metallography saw

Compact Power for Precision Sectioning

The SX100 is a fully manual sectioning saw with a fixed worktable and radial arm for vertical “chop” cuts. It supports 9″ and 10″ blades and includes a mechanical braking system for added safety. With CE and RoHS compliance, it’s a reliable choice for labs seeking simplicity, safety, and performance in one compact package.

Why Choose the LECO SX100 Series

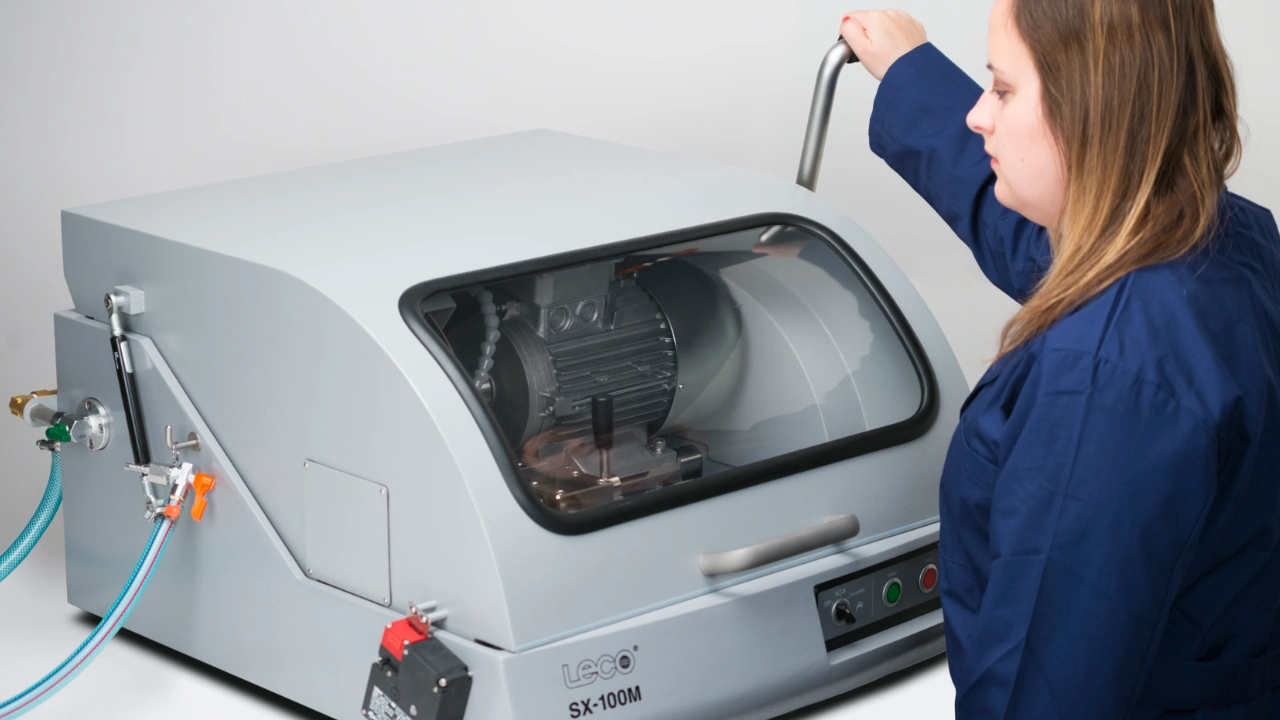

person operating metallography saw

Compact Design, Big Capability

The SX100 delivers impressive sectioning performance in a compact benchtop footprint, making it an excellent choice for laboratories where space is at a premium. Its ergonomic design supports comfortable day-to-day operation while providing the cutting capacity needed for a wide range of metallographic applications.

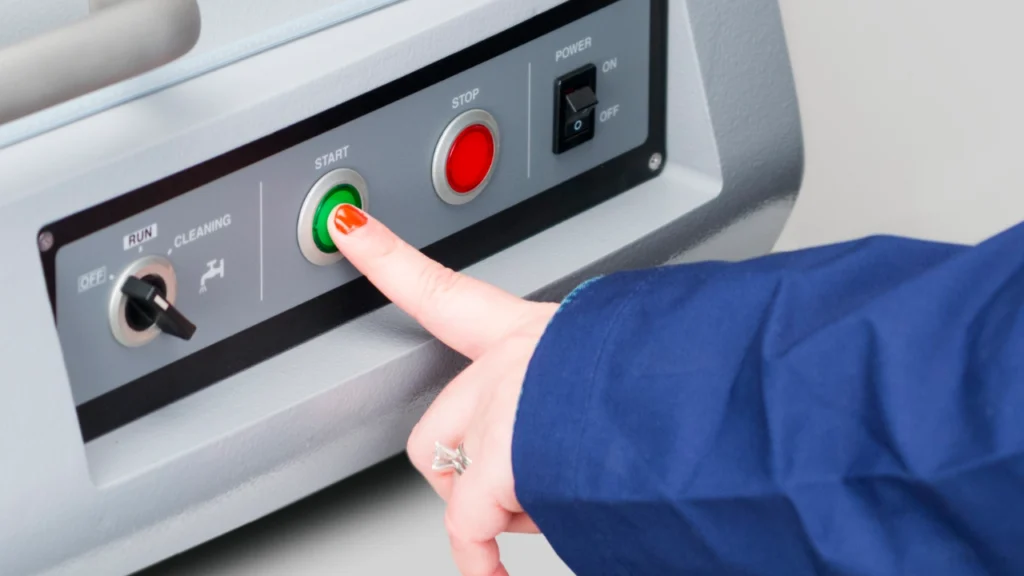

Pressing start on metallography sectioning machine

Smooth, Controlled Cutting

A conveniently positioned radial cutting arm allows operators to perform precise manual chop cuts with confidence and control. The intuitive design promotes comfortable operation and helps produce consistent sectioning results across a variety of sample types.

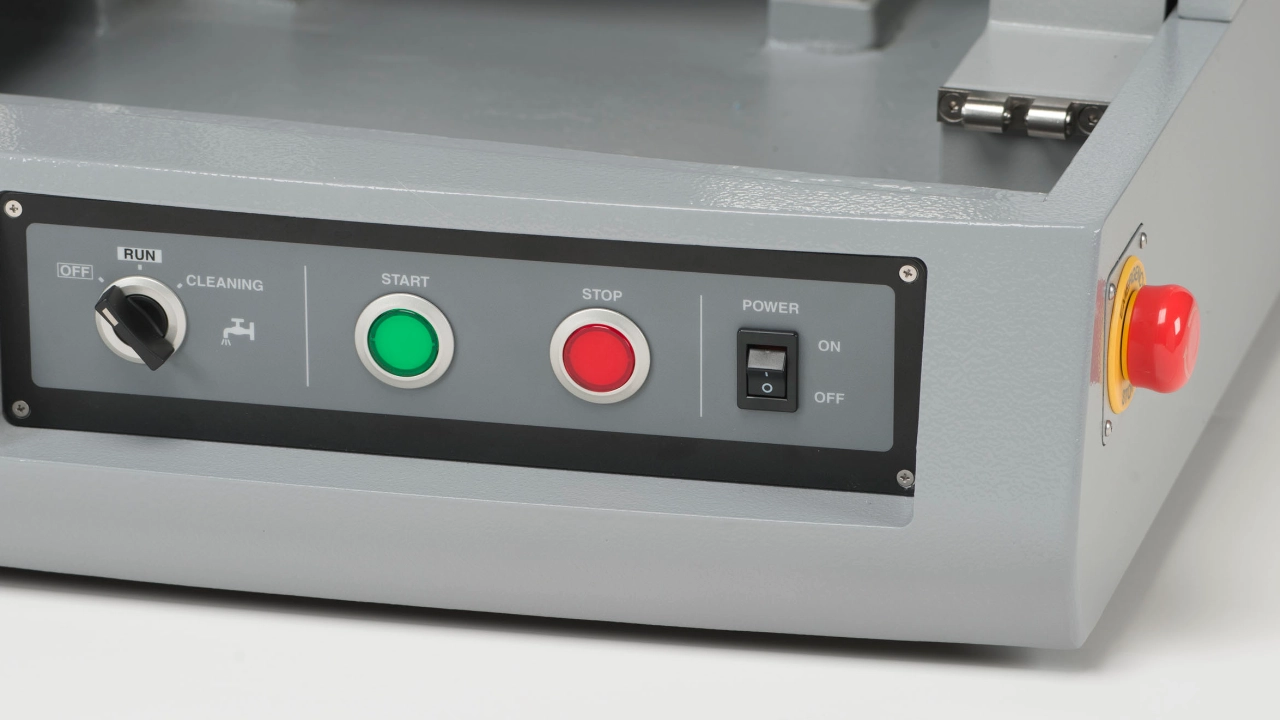

safety controls for metallographic saw

Enhanced Visibility and Operator Safety

A large polycarbonate viewing window and bright LED work light provide a clear view of the cutting area, helping users monitor progress throughout the sectioning process. Integrated safety features, including a hood interlock, support safe operation while maintaining productivity in the laboratory.

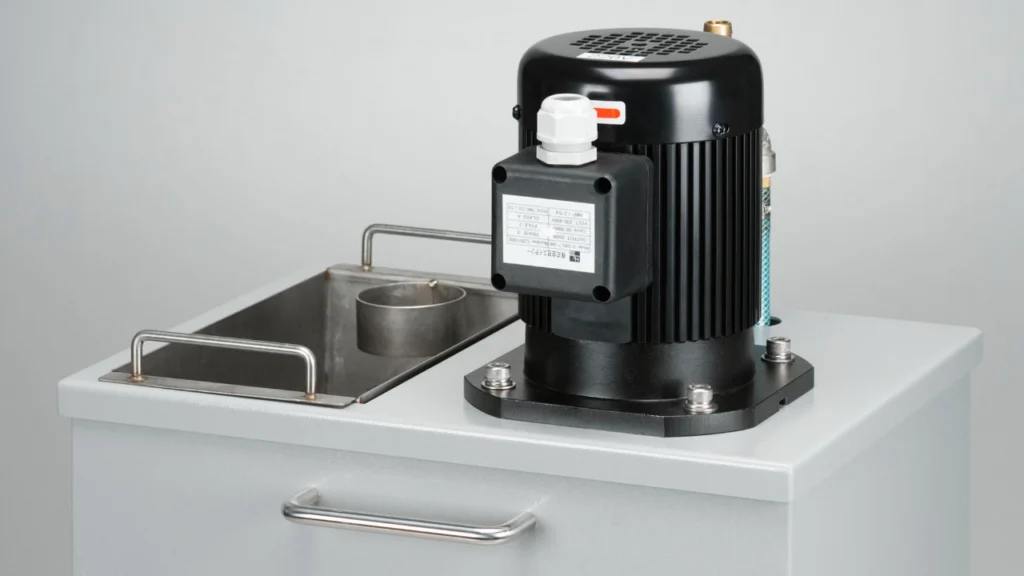

Coolant recirculation system for LECO sectioning machine

Simplified Operation and Maintenance

The SX100 is designed to make everyday use as efficient as possible. A straightforward control panel, removable side port for longer samples, and convenient access to key components simplify setup, cleaning, and routine maintenance, helping maximize instrument uptime.

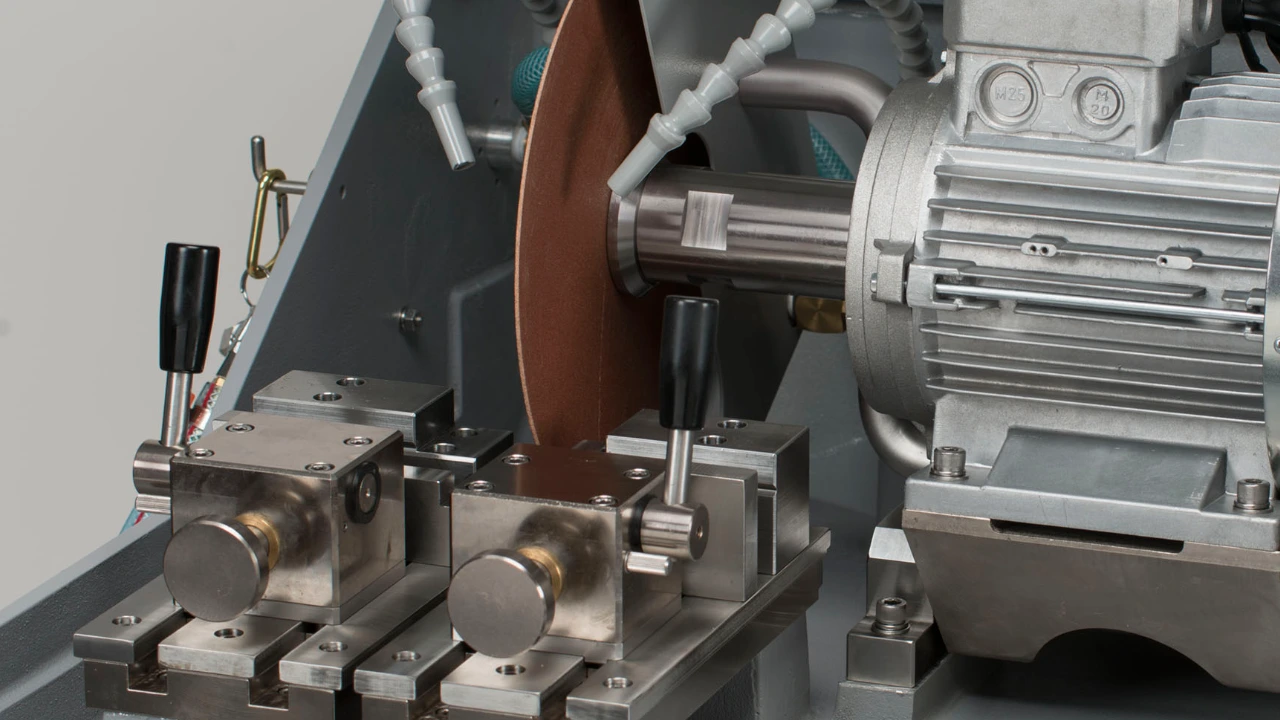

cutting wheel and table of metallographic sectioning machine

Dependable Cutting Performance

Powered by a robust 3 hp direct-drive motor, the SX100 delivers consistent cutting power for reliable sectioning performance. Electronic braking provides rapid wheel stoppage after cutting, enhancing both operator safety and overall workflow efficiency.

Download the SX100 Flyer

計測機器の用途

バッテリー分析
建材
高性能材料
金属、鉱物、および鉱石

コア分析

材料分類

楽器の詳細

特徴

Powerful 3 hp (2.2 kW) direct-drive motor
Delivers fast, efficient sectioning of challenging materials.
Supports 9 in. and 10 in. cutting blades
Provides flexibility for a broad range of sample sizes and sectioning requirements.
Radial arm manual sectioning design
Gives operators exceptional control and cutting feel, making precision sectioning simple and intuitive.
Included 6.6-gallon (25 L) recirculating cooling system
サンプルとブレードを冷却し、切断品質を向上させ、熱によるダメージを軽減します。.
Dual coolant nozzles
Provides efficient cooling and debris removal throughout the sectioning process.
Hood with safety interlock, polycarbonate viewing window, and LED work light
Provides improved safety and enhanced visibility of the cutting area.
Adjustable table vises
Securely holds a wide variety of sample shapes and sizes for more accurate sectioning.
